SLIM(R) 15W 18W 24W | LED CEILING LIGHT
SLIMAX ROUND
To printBASIC INFORMATION:
Lamp power: 15W 18W 24W

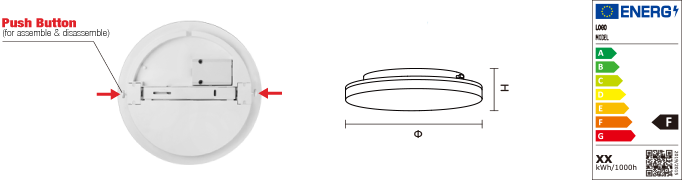

Installation: Auto Push button
Connection: Terminal block backside
LED board: OSP Aluminium
LED: SMD2835
Driver: Constant current IC
Housing: PBT+Aluiminium shell, PC diffuser
Application: Home, Desk, Shops, restaurants, hotels, coffee bar,etc.
Certificate: TUV
TECHNICAL CHARACTERISTICS
EMC Directive 2014/30/EU
EN 55015:2019 + A11:2020, EN 61547:2009, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019
LVD Directive 2014/35/EU
EN 60598-2-2:2012, EN 60598-1:2015, EN 62471:2008
RoHS Directive 2011/65/EU
EuP Directive 2009/125/EC
| Code | |||||||||
| Φ220*H50mm 15W IP54 | |||||||||
| LC-X0515 |  | ||||||||
| LC-X0515 | |||||||||
| LC-X0515 | |||||||||
| Code | |||||||||
| Φ280*H50mm 18W IP54 | |||||||||
| LC-X0518 | | ||||||||
| LC-X0518 | |||||||||
| LC-X0518 | |||||||||
| Code | |||||||||
| Φ330*H50mm SLIMAX ROUND 24W IP54 | |||||||||
| LC-X0524 | | ||||||||
| LC-X0524 | |||||||||
| LC-X0524 | |||||||||
PRODUCT CATALOG
