PLA Genone-S | LED DOWNLIGHT

LSDL-PA01-SX

BASIC INFORMATION:
Plastic Square LED downlight
Installation: Recessed
Color: Single or CCT switch
Connection: External driver
LED board: Aluminium
LED: SMD2835
Driver: Constant current IC

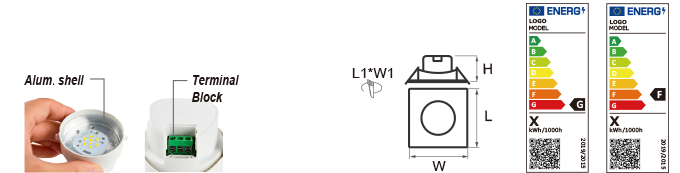

Housing: PC body, Aluminium shell inside, PC lens
Application: Home, Shops, Supermarket, restaurants, hotels, coffee bar,etc.
Certificate: CE, RoHS

155 152

TECHNICAL CHARACTERISTICS

EMC Directive 2014/30/EU
EN 55015:2013 + A1:2015, EN 61547:2009, EN 61000-3-2:2014, EN 61000-3-3:2013

LVD Directive 2014/35/EU
EN 60598-2-2:2012, EN 60598-1:2015, EN 62471:2008

RoHS Directive 2011/65/EU
EuP Directive 2009/125/EC

led downlight middle content square

Code	Input	Power	PF	Lumen	C.R.I	C.C.T.	LWH	L1*W1	Dim
5W Rotatable Square LED downlight 38°/60° IP20/IP44
LSDL-PA01-S05	100-240V	5 W	0.5	400lm	80	3000K	909042mm	76*76mm	Option
LSDL-PA01-S05	100-240V	5 W	0.5	400lm	80	4000K	909042mm	76*76mm	Option
LSDL-PA01-S05	100-240V	5 W	0.5	400lm	80	6500K	909042mm	76*76mm	Option

Code	Input	Power	DF	Lumen	C.R.I	C.C.T.	LWH	L1*W1	Dim
7W Rotatable Square LED downlight 38°/60° IP20/IP44
LSDL-PA01-S07	100-240V	7 W	0.5	560lm	80	3000K	909042mm	76*76mm	Option
LSDL-PA01-S07	100-240V	7 W	0.5	560lm	80	4000K	909042mm	76*76mm	Option
LSDL-PA01-S07	100-240V	7 W	0.5	560lm	80	6500K	909042mm	76*76mm	Option

Code	Input	Power	DF	Lumen	C.R.I	C.C.T.	LWH	L1*W1	Dim
9W Rotatable Square LED downlight 60° IP20/IP44
LSDL-PA01-S09	100-240V	9 W	0.5	720lm	80	3000K	11811842mm	90*90mm	Option
LSDL-PA01-S09	100-240V	9 W	0.5	720lm	80	4000K	11811842mm	90*90mm	Option
LSDL-PA01-S09	100-240V	9 W	0.5	720lm	80	6500K	11811842mm	90*90mm	Option

Code	Input	Power	DF	Lumen	C.R.I	C.C.T.	LWH	L1*W1	Dim
12W Rotatable Square LED downlight 60° IP20/IP44
LSDL-PA01-S12	100-240V	12 W	0.5	960lm	80	3000K	13813842mm	120*120mm	Option
LSDL-PA01-S12	100-240V	12 W	0.5	960lm	80	4000K	13813842mm	120*120mm	Option
LSDL-PA01-S12	100-240V	12 W	0.5	960lm	80	6500K	13813842mm	120*120mm	Option
