T120 High Power 40W | T lamp

HX-S40-T120

Basic information:

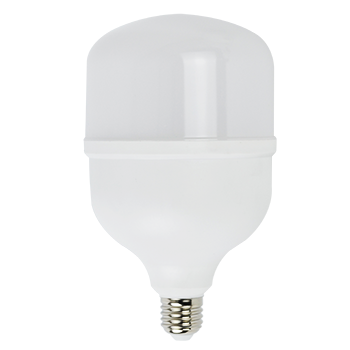

Plastic Aluminium T120 40W high power LED lamp
Base: E27, B22
LED board: Aluminium
LED: SMD2835
Driver: Constant current IC
Housing: PBT+Aluiminium shell, PC diffuser
Application: Workshop, Home, Shops, restaurants, hotels, coffee bar,etc.

top pic.png

TECHNICAL CHARACTERISTICS

Safety according to-Directive 2014/35/EU(LVD)
EN 62560: 2012+A1:2015+A11:2019
EN 62471: 2008
EN 62473 :2015

EMC according to- Directive 2014/30/EU(EMC)
EN 55015: 2019+A11:2020
EN 61547: 2009,
EN 61000-3-2:2014,
EN 61000-3-3:2013

ERP according to-Directive (EU) 2019/2020 and EEL (EU) 2019/2015

40 reflector middle content

Code	Input	Power	PF	Lumen	C.R.I	C.C.T.	Base	Dimmable
T120 High Power 40W
HX-S40-T120	220-240V	40 W	0.5/0.9	4000	80	3000K	E27/B22	Option
HX-S40-T120	220-240V	40 W	0.5/0.9	4000	80	4000K	E27/B22	Option
HX-S40-T120	220-240V	40 W	0.5/0.9	4000	80	6500K	E27/B22	Option
HX-S40-T120	220-240V	40 W	0.5/0.9	4000	80	8000K	E27/B22	Option
