T80 20W G2 | T lamp

HX-S20-T80 G2

Basic information:

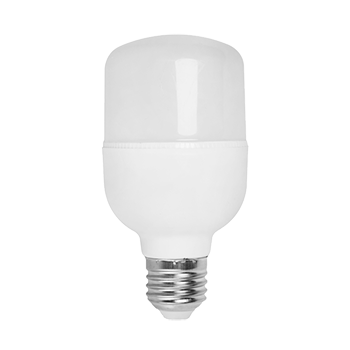

Plastic Aluminium T80 20W G2 series LED lamp
Base: E27, B22
LED board: Aluminium
LED: SMD2835
Driver: Constant current IC
Housing: PBT+Aluiminium shell, PC diffuser
Application: Workshop, Home, Shops, restaurants, hotels, coffee bar,etc.

top pic.png

TECHNICAL CHARACTERISTICS

Safety according to-Directive 2014/35/EU(LVD)
EN 62560: 2012+A1:2015+A11:2019
EN 62471: 2008
EN 62473 :2015

EMC according to- Directive 2014/30/EU(EMC)
EN 55015: 2019+A11:2020
EN 61547: 2009,
EN 61000-3-2:2014,
EN 61000-3-3:2013

ERP according to-Directive (EU) 2019/2020 and EEL (EU) 2019/2015

T80 g2 highpower middle content

Part No.	Input	Power	DF	Lumen	C.R.I	C.C.T.	Base	Dimmable
T80 G2 Series 20W
HX-S20-T80 G2	220-240V	20 W	0.7	2000lm	80	3000K	E27/B22	Option
HX-S20-T80 G2	220-240V	20 W	0.7	2000lm	80	4000K	E27/B22	Option
HX-S20-T80 G2	220-240V	20 W	0.7	2000lm	80	6000K	E27/B22	Option
